Trigger HikCentral Alarm Node

Trigger Generic Event and Alarms in HikCentral when certain conditions are met

Overview

This node triggers a Generic Event in HikCentral based on specified trigger conditions. This generic event can be configured in HikCentral to trigger an alarm and take other actions.

25502550

Alarm triggered in HikCentral using Lumeo generated Generic Event

Inputs & Outputs

  • Inputs : 1, Media Format : Raw Video
  • Outputs : 1, Media Format: Raw Video
  • Output Metadata : None

Properties

hostname

Hostname or IP address of the HikCentral server. Please ensure that the server is reachable from the Lumeo Gateway that this pipeline is deployed to.

ex. 192.168.4.55

port

Generic Event port that is configured in HikCentral settings. See below for configuration instructions. Lumeo will connect to the port using TCP.

ex. 15300

event_name

Name of the HikCentral Generic event triggered by this node. Use to setup Generic Event filter in HikCentral.

ex. Overtime Parking

regex_meta

Comma separated regular expressions to select additional metadata to be sent with the event. Use to configure Generic event filters in HikCentral.

ex. nodes.annotate_line_counter1.* will send line counter metadata to HikCentral.

trigger

If set, an alarm is raised when this trigger condition evaluates to True, subject to the minimum interval as specified below.

The trigger expression must be a valid Dot-notation expression that operates on Pipeline Metadata and evaluates to True or False. See details here.

ex. `nodes.annotate_line_counter1.lines.line1.total_objects_crossed_delta > 0

interval

Minimum time, in seconds, between consecutive alarms.

If a trigger is not specified, an alarm will be raised at this interval.

ex. 60

HikCentral Setup

Enable Generic Events

Lumeo HikCentral Integration uses Generic Events to send Events to HikCentral. To enable them:

  1. Launch the HikCentral Web Client, and navigate to General -> Event and Alarm -> Generic Event
10101010

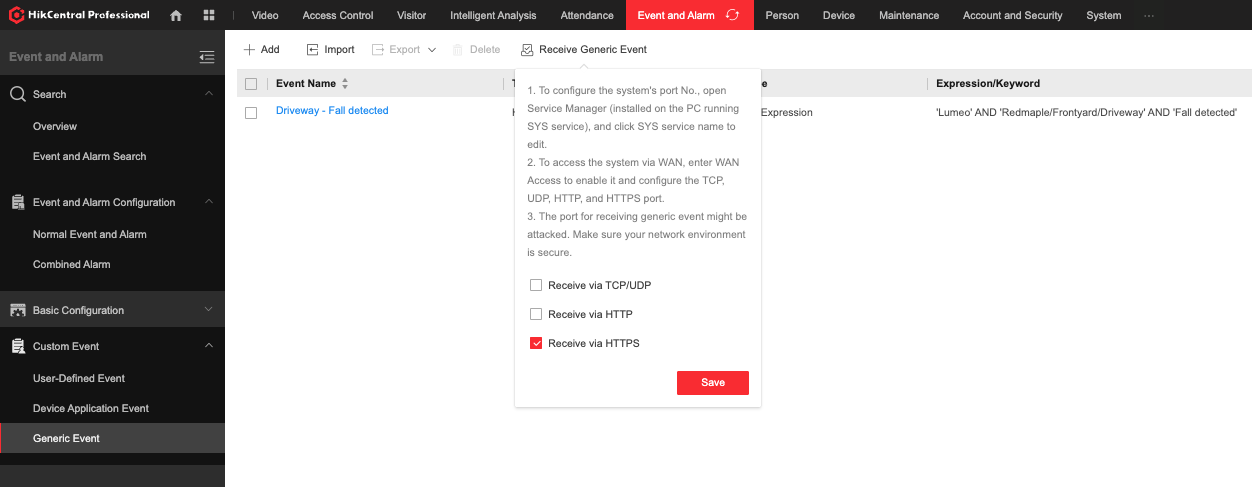

  1. Check "Receive Generic Event" checkbox and click Save.
10101010

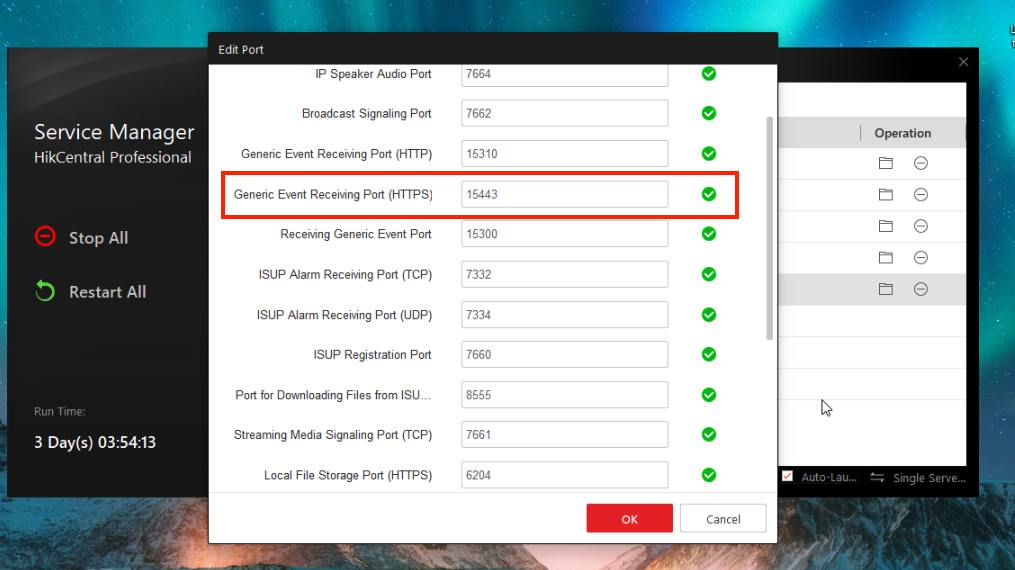

  1. Open HikCentral Service Manager and click System Management Services to confirm the Generic Event receiving port.
958958
  1. Use the "Receiving Generic Event Port" value to setup your node properties in Lumeo.
493493

Event Configuration

Create a new Generic Event in HikCentral (from the General -> Event and Alarm -> Generic Events page) with the following settings:

  • Transport Type: TCP
  • Match Type: Search
  • Expression: You can use any combination of terms that appear in the Metadata sent by Lumeo (format below).
10681068

Lumeo will send the following metadata in the Generic Event to HikCentral. This can be used to create a filter and configure the Generic event.

Note that the event_meta values will vary based on the configured properties in Lumeo node.

{
  "originator": "Lumeo",
  "event_name": "event_name configured in Node settings",
  "sources": [
    {"source_id":"83118-121381-2138120-122",
     "source_name":"Left Parking Lot Camera"}
  ],
  "event_meta": [
    "nodes.annotate_line_counter1.lines.line1.total_objects_crossed_delta": 10
    ]
}

Alarm Configuration

This Generic Event can then be used to trigger an Alarm or take other actions (such as recording video, sending alerts, messages, etc).

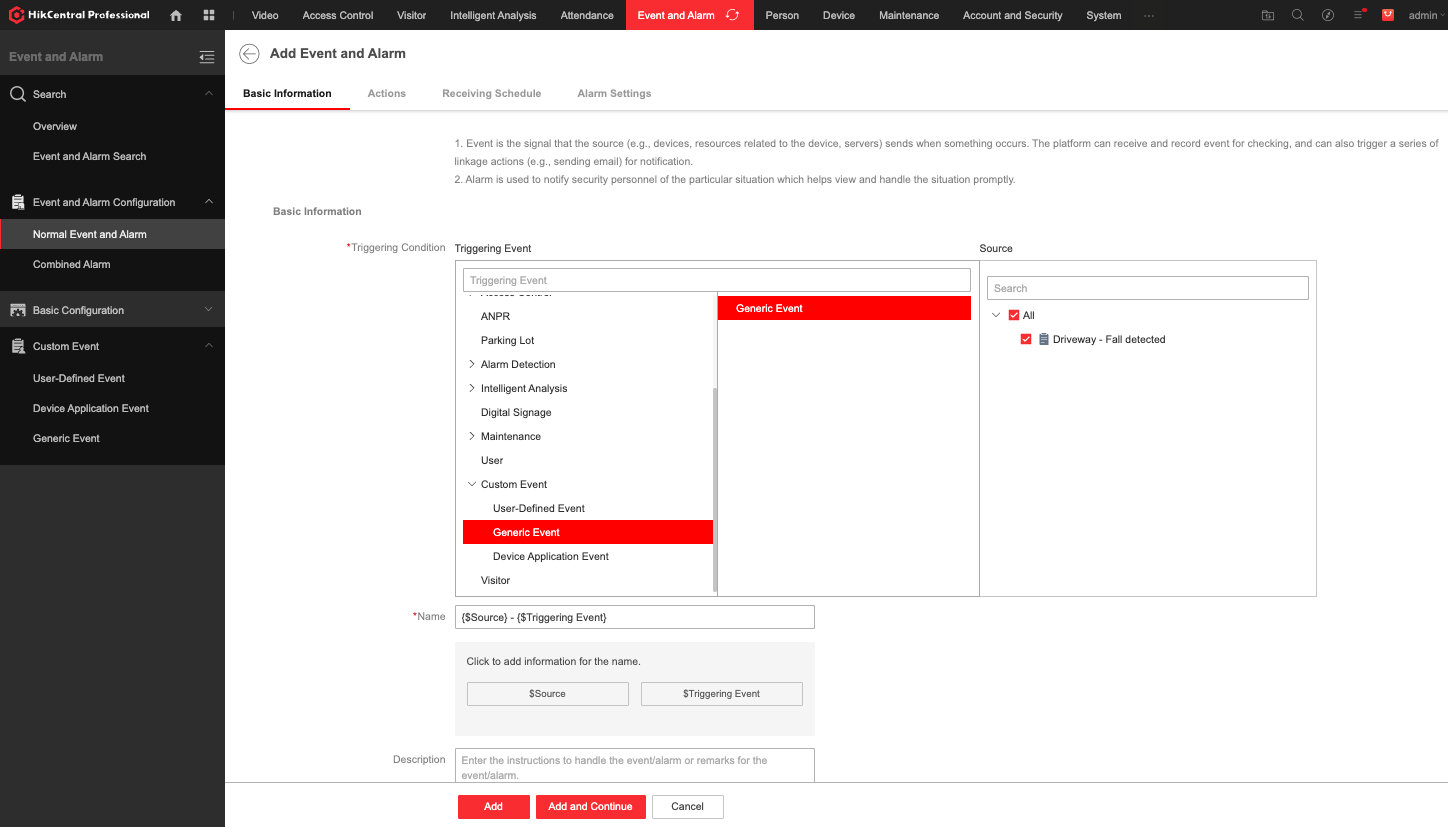

Navigate to General -> Event and Alarm -> Event and Alarm Configuration -> Normal Event and Alarm.

14591459
