Lumeo Gateway Installer

Use the Lumeo gateway installer script to install a Lumeo gateway on a bare-metal machine on-premises or a cloud GPU instance

Follow these instructions if you want to run on a bare-metal box. Supported hardware here : Gateway Hardware

1. Device Preparation

Server with Nvidia GPU

This step is only needed for Discrete GPU setups, not for Jetson devices

If installing on x86 server with Nvidia GPU, before you start, ensure that your device is setup with Ubuntu 22 or later, and the latest Nvidia drivers (version 560 or newer for RTX GPUs and version 535 or newer for Datacenter GPUs).

$ sudo ubuntu-drivers list

nvidia-driver-535-server-open, (kernel modules provided by linux-modules-nvidia-535-server-open-generic-hwe-22.04)
nvidia-driver-545-open, (kernel modules provided by nvidia-dkms-545-open)
nvidia-driver-570-server, (kernel modules provided by linux-modules-nvidia-570-server-generic-hwe-22.04)
nvidia-driver-570-server-open, (kernel modules provided by linux-modules-nvidia-570-server-open-generic-hwe-22.04)
nvidia-driver-535-open, (kernel modules provided by linux-modules-nvidia-535-open-generic-hwe-22.04)
nvidia-driver-535-server, (kernel modules provided by linux-modules-nvidia-535-server-generic-hwe-22.04)
nvidia-driver-565-open, (kernel modules provided by nvidia-dkms-565-open)
nvidia-driver-550-open, (kernel modules provided by linux-modules-nvidia-550-open-generic-hwe-22.04)
nvidia-driver-560, (kernel modules provided by nvidia-dkms-560)
nvidia-driver-580-open, (kernel modules provided by linux-modules-nvidia-580-open-generic-hwe-22.04)
nvidia-driver-580-server, (kernel modules provided by linux-modules-nvidia-580-server-generic-hwe-22.04)
nvidia-driver-570-open, (kernel modules provided by linux-modules-nvidia-570-open-generic-hwe-22.04)
nvidia-driver-580, (kernel modules provided by linux-modules-nvidia-580-generic-hwe-22.04)
nvidia-driver-545, (kernel modules provided by nvidia-dkms-545)
nvidia-driver-570, (kernel modules provided by linux-modules-nvidia-570-generic-hwe-22.04)
nvidia-driver-580-server-open, (kernel modules provided by linux-modules-nvidia-580-server-open-generic-hwe-22.04)
nvidia-driver-470, (kernel modules provided by nvidia-dkms-470)
nvidia-driver-470-server, (kernel modules provided by nvidia-dkms-470-server)
nvidia-driver-535, (kernel modules provided by linux-modules-nvidia-535-generic-hwe-22.04)
nvidia-driver-550, (kernel modules provided by linux-modules-nvidia-550-generic-hwe-22.04)
nvidia-driver-565, (kernel modules provided by nvidia-dkms-565)

$ sudo apt-get update && sudo apt-get install -y nvidia-driver-580

Remember to reboot after installing the driver, and verify by running nvidia-smi on a terminal prompt.

Nvidia Jetson Orin

Ensure that the Jetson device has Jetpack 6.2.1 (preferable). Lumeo can also be installed on Jetpack 5.x but some newer features require Jetpack 6.x.

2. Interactive Install

Set up a new Gateway by running the following commands on it and following the installer prompts. The Engine only option below installs just the Lumeo gateway engine, and the option with the Web interface installs it with a web interface to manage it.

We recommend using the Engine-only install for public clouds, and installing with the Web interface for on-prem devices. The Web interface makes management and maintenance easier.

Engine only.

bash <(wget -qO- https://link.lumeo.com/setup)

This command can also be found in Console under Gateways → Add Gateway. The installer offers you a bunch of options to optimize your installation in the interactive model. Installing the Gateway using this installer will also set it up to auto update whenever a new Gateway version is released.

After running the installer command once, you can invoke the Lumeo gateway manager / installer in the future with a simple lumeo-gateway-manager command.

Key commands (run lumeo-gateway-managerfor a full list) :

CommandDescription
listList the currently installed Lumeo gateway containers
installInstall a new Lumeo gateway container
removeRemove a Lumeo gateway container
install-wgmInstall Web Gateway Manager (web interface for managing Lumeo gateways)

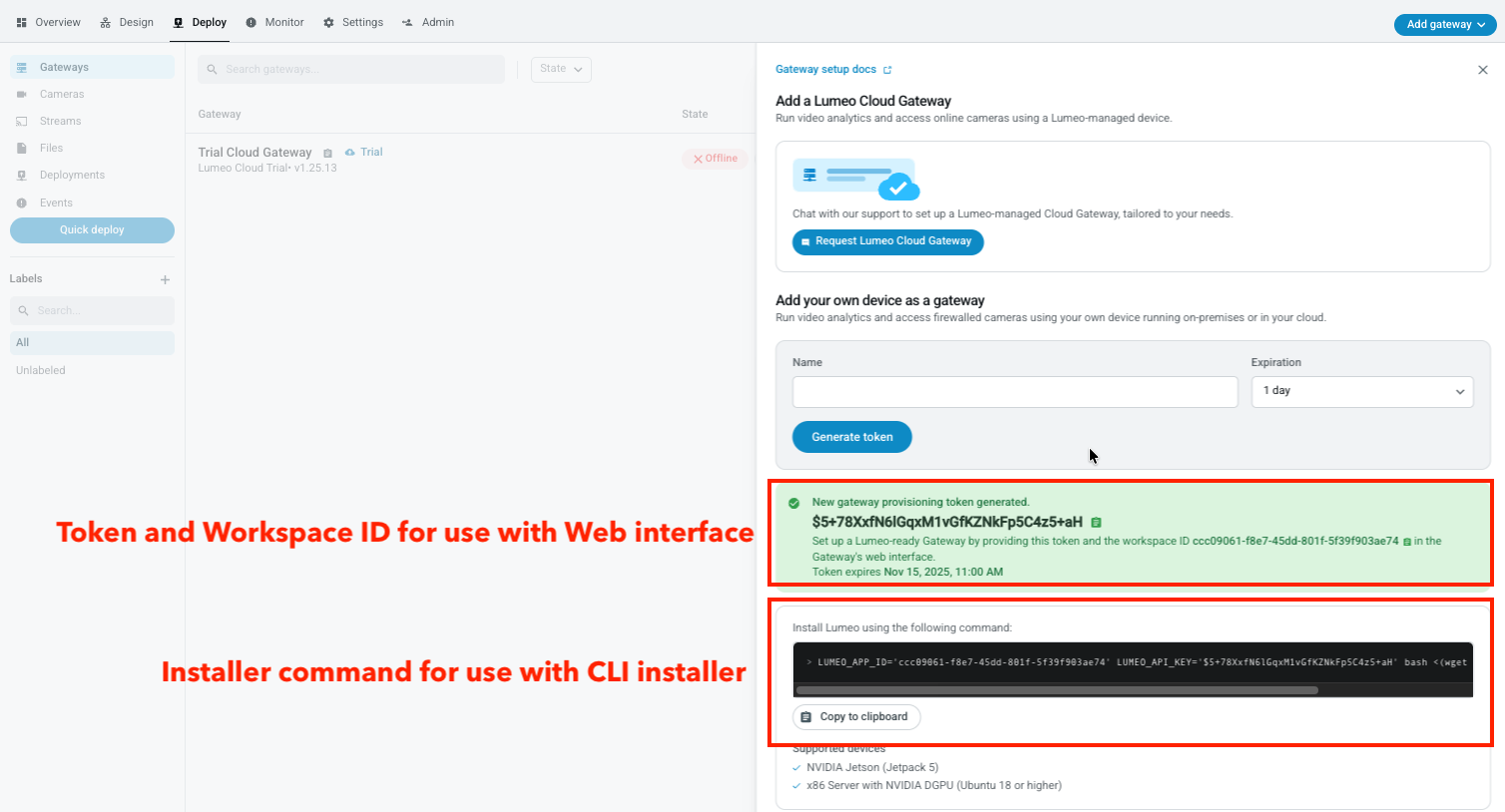

To make it easy, head to Deploy -> Add Gateway to generate a gateway provisioning token and grab a prefilled installer command you can copy and run on your gateway.

Gateway installer command


Engine with Web Interface

Use this command to install Lumeo Gateway engine with a web interface.

bash <(wget -qO- https://link.lumeo.com/setup) install-oem

After running the installer, follow next steps on Lumeo-Ready Gateways to link the Gateway to your Lumeo account.


3. Unattended Install

Gateway installer supports the following environment variables to allow for bulk, unattended installations:

Env Variable

Description

Notes

LUMEO_APP_ID

Specify the Application ID to connect this gateway to. See

API

section to find your Application ID.

LUMEO_API_KEY

Provide the API Key for the specific Application you want to connect this gateway to. See

API

section to find your API Key.

LUMEO_GATEWAY_NAME

Specify the name used for the Gateway & container

LUMEO_UPDATE_SCHEDULE

Schedule Lumeo container update in a certain date range. See

Updates Schedule

NO_PROMPT

Specify this env variable to provision a Gateway using the default settings.

Note: NO_PROMPT must be used along with passing an explicit command to the installer, like in the Unattended install example below.

Examples: Install and provision gateway to a specific Application Id.

LUMEO_APP_ID='app_id' LUMEO_API_KEY='api_key' bash <(wget -qO- https://link.lumeo.com/setup)
LUMEO_APP_ID='app_id' LUMEO_API_KEY='api_key' NO_PROMPT=1  bash <(wget -qO- https://link.lumeo.com/setup) install

4. Update Schedule

Lumeo Gateway ensures seamless updates to keep your system running smoothly and securely. You can customize the update schedule according to your preferences. Here are the available string formats and examples for defining the update schedule:

Time Range Updates: Define a time window during which updates can occur. This is particularly useful for ensuring updates happen during off-peak hours.

Example: monday 9:00am - 11:00am Example: monday 9:00am - wednesday 5:00pm Example: friday 5:00pm - monday 9:00am Example: tuesday 2:45pm

Weekend & weekdays Updates: Schedule updates specifically for weekends or weekdays.

Example: weekdays 8:00pm Example: weekends 10:00am

Note: When the end time is not specified for a certain format, it will default to 11:59pm. For example, wednesday 3:15pm translates internally to wednesday 3:15pm - 11:59pm. Similarly, weekdays 3:15pm and weekends 3:15pm follow the same convention.

Note: The minimum time interval for updates is 2 hours.

You can configure, edit or remove the update schedule from your Gateway settings by re-running the setup script and selecting the option schedule, or use the LUMEO_UPDATE_SCHEDULE environment variable during installation.

Ensure that your update schedule aligns with your operational requirements and consider factors such as peak usage times and system downtime.
